Description
| Part Number | Description |
|---|---|
| 041103B-S | Standard 0.018″ diameter solder tail pins installed |
| 041103B-S-[MPN] | Standard 0.018″ diameter solder tail pins installed, populated with component [MPN] |
| 041103B-N | No pins installed |
Specifications:

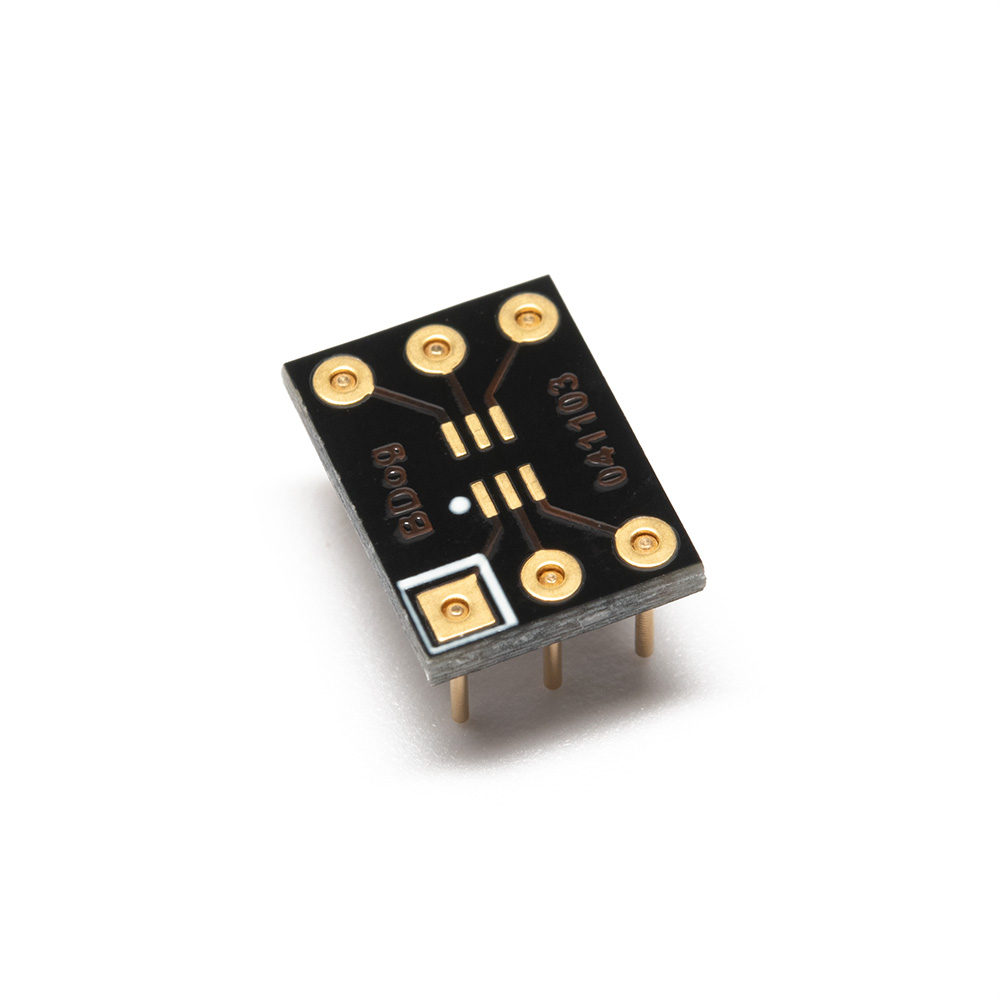

- Maps each pin from the SC70 land pattern to the equivalent 6-pin DIP pin.
- SC70 (0.65mm pin pitch) land pattern on the top surface.
- Adapter footprint is 6-pin DIP with pins on a 0.1 in. pitch in rows spaced at 0.3 in.
- Board dimensions: 400 mil by 300 mil
- Contact pin diameter: 0.018 in.
- Tg 130, FR-4 laminate
- ENIG surface finish
- RoHS compliant
- Made in USA of domestic and foreign components.
- Download schematic.
